Anatomy of a CSS Phone Mockup

A phone mockup looks like one effect, but it's actually six composited layers — each doing a specific job. Collapse them all and you get a flat coloured rectangle. Stack them in the right order and the eye reads it as glass, metal, and depth.

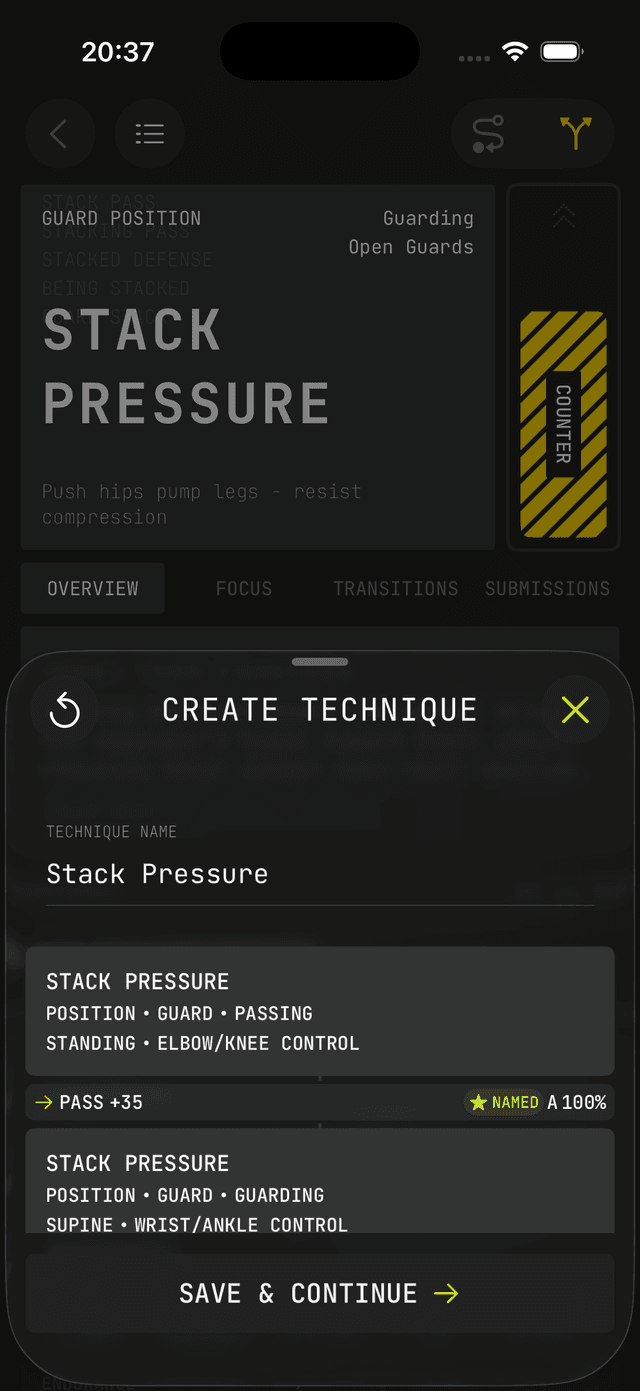

This is a walkthrough of how I built the PhoneMockup component above, from a blank div to a mouse-reactive 3D frame. We'll add one layer at a time so it's clear what each one contributes.

Here's the skeleton we're building toward:

<div className="bevel">        {/* Layer 1: metallic stroke */}
  <div className="body">       {/* Layer 1: dark matte casing */}
    <div className="screen">   {/* Layer 2: clipped content */}
      <DynamicIsland />        {/* Layer 3: notch + camera */}
      <Image />
      <div className="inset-shadow" />   {/* Layer 2: depth ring */}
      <div className="shine-sharp" />    {/* Layer 4: glass glint */}
      <div className="shine-soft" />     {/* Layer 4: ambient wash */}
    </div>
  </div>
</div>

Layers 5 and 6 are JavaScript: tilt physics and reactive shadows. Let's build up to them.

Layer 1: The Bevel and the Stroke

The outermost div is just padding: 1 and a gradient — that single pixel of visible padding is the metallic bevel:

<div style={{
  padding: 1,
  borderRadius: outerRadius + 1,
  background: "linear-gradient(135deg, #555 0%, #000 100%)",
}}>

The gradient runs from #555 to #000 at 135° — top-left lighter than bottom-right. This simulates a brushed aluminium edge catching light from above. It's one CSS property doing optical work that would otherwise take a texture.

The borderRadius is calculated as width * 0.12. The iPhone's corner radius scales proportionally to the device width, so we keep it as a ratio rather than a fixed pixel value. Resize the component and the corners stay iPhone-shaped.

Nested inside: the dark matte casing:

<div style={{
  padding: 5,
  borderRadius: outerRadius,
  background: "#181818",
}}>

5px of padding is the visible dark frame around the screen. Notice borderRadius here is outerRadius, not outerRadius + 1 — the outer wrapper gets +1 to avoid a visual gap between the bevel ring and the body where the gradient might bleed through.

innerRadius is outerRadius - 5 — matching the 5px padding offset. This keeps the inner corners visually concentric with the outer ones. Without this, the screen corners appear too sharp or too round relative to the frame.

Ambient shadows

A single box-shadow looks artificial — the falloff is a crisp edge rather than a natural penumbra. We stack nine layers, each progressively lighter and more diffuse:

const ambientShadows = [
  "0 1px 2px rgba(0,0,0,0.15)",
  "0 2px 4px rgba(0,0,0,0.12)",
  "0 4px 8px rgba(0,0,0,0.10)",
  "0 6px 12px 2px rgba(0,0,0,0.08)",
  "0 8px 16px 4px rgba(0,0,0,0.06)",
  "0 12px 24px 6px rgba(0,0,0,0.05)",
  "0 16px 32px 10px rgba(0,0,0,0.04)",
  "0 24px 48px 16px rgba(0,0,0,0.03)",
  "0 32px 64px 24px rgba(0,0,0,0.03)",
]

Each step doubles the blur, adds more spread, and halves the opacity. The result is a soft, real-looking shadow that falls off the way light actually does. This is passed as the box-shadow property alongside the edge shadows we'll add in Layer 6.

Layer 2: The Screen

The screen wrapper does two things: clips the image to the rounded shape, and adds a depth ring:

<div style={{
  position: "relative",
  borderRadius: innerRadius,
  overflow: "hidden",
  lineHeight: 0,
}}>
  <Image src={src} width={width} height={height} />
  {/* Screen inset shadow */}
  <div style={{
    position: "absolute",
    inset: 0,
    borderRadius: innerRadius,
    boxShadow: "inset 0 0 3px 1px rgba(0,0,0,0.4)",
    pointerEvents: "none",
    zIndex: 2,
  }} />

overflow: hidden does the border-radius clipping on the image — the image itself doesn't need a borderRadius because the container clips it.

Without an image yet, we can see the screen container clipped to the frame:

lineHeight: 0 is non-obvious but essential. Images are inline elements by default, which means the browser reserves space below them for text descenders — about 4px of empty space at the bottom of the container. Setting lineHeight: 0 on the wrapper collapses that. Without it, the image floats slightly above the bottom of the frame.

Height calculation

We need to maintain the real iPhone aspect ratio. The iPhone 17 Pro is 2622 × 1206 pixels — a ratio of roughly 2.175:1. We derive height from width:

const height = Math.round(width * (2622 / 1206))

Pass a width prop and height follows automatically. Hardcoding a height would break the proportions the moment someone changes the width.

The inset shadow overlay sits at zIndex: 2 above the image. It's a dark ring that recesses the screen into the bezel — the difference between a screen that looks flush and one that looks embedded.

Layer 3: The Dynamic Island

Three concentric circles faking lens depth:

// notchW = width * 0.33, notchH = width * 0.09
<div style={{
  position: "absolute",
  top: 8,
  left: "50%",
  transform: "translateX(-50%)",
  width: notchW,
  height: notchH,
  borderRadius: 999,
  background: "#181818",
  zIndex: 1,
}}>
  {/* Camera lens — outer housing */}
  <div style={{
    borderRadius: "50%",
    background: "radial-gradient(circle at 35% 35%, #1a1a1a 0%, #050505 100%)",
    boxShadow: "inset 0 0 1px 0.5px rgba(255,255,255,0.08)",
  }}>
    {/* Lens inner ring */}
    <div style={{
      inset: 2,
      background: "radial-gradient(circle at 40% 40%, #222 0%, #0a0a0a 60%, #050505 100%)",
    }}>
      {/* Specular highlight — covered in Layer 6 */}
    </div>
  </div>
</div>

borderRadius: 999 on the island container is intentional. A value large enough — larger than half the element's height — always produces a perfect pill shape regardless of the element's actual dimensions. No need to recalculate as width changes.

The radial gradients are positioned off-center (35% 35%, 40% 40%) to simulate a fixed light source above and to the left. Moving the gradient center away from 50% 50% shifts the bright spot, making the glass appear to have a real angle relative to the light.

The zIndex: 1 on the island positions it above the image but below the shine overlays (zIndex: 2). The Dynamic Island is part of the device, not a reflection.

Building it up in three steps — pill, lens housing, inner ring with specular:

Layer 4: The Glass Layers

Two overlays simulate screen glass. Both sit at zIndex: 2.

Sharp diagonal glint

<div style={{
  position: "absolute",
  top: -(width * 0.25),
  left: -(width * 0.25),
  right: -(width * 0.25),
  bottom: -(width * 0.25),
  background: "linear-gradient(155deg,
    rgba(255,255,255,0.08) 0%,
    rgba(255,255,255,0.08) 35%,
    rgba(255,255,255,0) 35%
  )",
}} />

The trick here is the negative positioning. Setting top/left/right/bottom all to -25% makes this div 50% larger than its parent in every direction. The parent has overflow: hidden, so only the portion that falls within the screen bounds is visible.

Why bother making it oversized? So we can rotate and translate it without revealing transparent corners. When the tilt physics move this overlay (Layer 6), it needs room to slide without the edge becoming visible.

The gradient has two colour stops at the same percentage: rgba(255,255,255,0.08) 35% and rgba(255,255,255,0) 35%. Same position, different values — that's how you get a hard edge in a CSS gradient. No transition, just a sharp cut.

Soft ambient wash

<div style={{
  position: "absolute",
  inset: 3,
  background: "linear-gradient(135deg,
    rgba(255,255,255,0.06) 0%,
    rgba(255,255,255,0) 55%
  )",
}} />

Gentler falloff, slightly different angle. This adds the ambient diffusion that sits behind the glint — making the top-left corner of the screen look softly lit rather than just adding one bright stripe.

Layer 5: Making it Move

State and ref:

const containerRef = useRef(null)
const [tilt, setTilt] = useState({ rotateX: 0, rotateY: 0 })

The core function normalises pointer position to −1..1:

function tiltFromPoint(clientX, clientY) {
  const rect = containerRef.current.getBoundingClientRect()
  // Convert absolute viewport coords to element-local, then normalise to -1..1
  const x = ((clientX - rect.left) / rect.width) * 2 - 1
  const y = ((clientY - rect.top) / rect.height) * 2 - 1

  setTilt({
    rotateX: -y * MAX_TILT,  // pointer at top → tilt top toward viewer
    rotateY: x * MAX_TILT,   // pointer at right → tilt right
  })
}

getBoundingClientRect() returns the element's position in the viewport. Subtracting rect.left converts from viewport-absolute to element-local coordinates. Dividing by rect.width normalises to 0–1. Multiplying by 2 and subtracting 1 shifts to −1..1.

rotateX: -y is the axis inversion. When the pointer is near the top of the element, the top of the phone should tilt toward you — that's a positive rotateX in CSS 3D space. But y is negative at the top (above centre), so we negate it.

The transform:

transform: `perspective(800px) rotateX(${tilt.rotateX}deg) rotateY(${tilt.rotateY}deg)`

perspective(800px) is the simulated camera distance. Smaller values increase the foreshortening effect — 400px looks dramatic, 1200px looks nearly flat. 800px hits the sweet spot for a phone-sized element.

transformStyle: "preserve-3d" propagates the 3D context to child elements. Without it, all the children collapse to the same plane and depth ordering breaks.

willChange: "transform" is a GPU hint — promotes the element to its own compositing layer before any animation starts, avoiding a repaint on first move.

Touch support uses the same function:

function handleTouchMove(e) {
  const touch = e.touches[0]
  if (touch) tiltFromPoint(touch.clientX, touch.clientY)
}

e.touches[0] is the first touch point. clientX and clientY are the same coordinate space as mouse events, so tiltFromPoint handles both.

Layer 6: Edge Extrusion and Shine Physics

When you tilt a physical phone, you see its edges. We fake this with offset box-shadow:

const edgeX = -(tilt.rotateY / MAX_TILT) * EDGE_DEPTH
const edgeY = (tilt.rotateX / MAX_TILT) * EDGE_DEPTH

const edgeShadows = Array.from({ length: EDGE_LAYERS }, (_, i) => {
  const t = (i + 1) / EDGE_LAYERS
  return `${edgeX * t}px ${edgeY * t}px 0 0 #222`
})

When rotateY > 0 (tilting right), edgeX is negative, shifting the shadow left — which makes the left edge appear to protrude. Two stacked layers (EDGE_LAYERS = 2) with progressive offsets give soft depth rather than one sharp step.

The blur radius is 0 — these are solid-colour shadows, not diffuse. They're edge geometry, not light scatter.

The glass shine overlays also react to tilt:

const shineX = -(tilt.rotateY / MAX_TILT) * SHINE_MAX_OFFSET
const shineY = (tilt.rotateX / MAX_TILT) * SHINE_MAX_OFFSET
const lightAlign = (-tilt.rotateY + tilt.rotateX) / (2 * MAX_TILT)  // -1 to 1
const shineOpacity = Math.max(0, Math.min(1, 0.5 + lightAlign * 0.5))
const shineAngle = 155 + (tilt.rotateY / MAX_TILT) * 5  // ±5° rotation

lightAlign measures how much the screen's normal vector aligns with the fixed top-left light source. Tilt the top-left corner toward the viewer and lightAlign increases, brightening the shine. Tilt it away and the shine fades.

shineX/Y slide the oversized shine overlay in the direction opposite to tilt — the reflection appears to hold still relative to the light source while the glass moves beneath it.

The specular highlight inside the camera lens follows the same values:

<div style={{
  top: `${20 - (tilt.rotateX / MAX_TILT) * 10}%`,
  left: `${25 - (tilt.rotateY / MAX_TILT) * 10}%`,
}} />

At rest it's at top: 20%, left: 25% — off-center, simulating a fixed light above-left. As the device tilts, it moves, maintaining the illusion of a consistent light source.

Accessibility

One useEffect respects prefers-reduced-motion:

useEffect(() => {
  const mq = window.matchMedia("(prefers-reduced-motion: reduce)")
  setReducedMotion(mq.matches)
  const handler = (e) => setReducedMotion(e.matches)
  mq.addEventListener("change", handler)
  return () => mq.removeEventListener("change", handler)
}, [])

We listen for runtime changes, not just the initial value — users can toggle system preferences while the page is open. When reducedMotion is true, tiltFromPoint returns early. The transition CSS is still present but never fires.

All Together

Six layers, each handling one physical phenomenon:

The key insight: physical objects fool the eye by accumulating subtle cues. A single gradient isn't convincing. A single shadow isn't convincing. But six layers, each doing their specific job — bevel, shadow falloff, depth ring, glass glint, edge geometry, reactive shine — combine into something the brain reads as solid.

You can see the full component on the apps page.
